Outdoor fiber optic cable 24 cores GYXTW loose tube with strength member
Outdoor fiber optic cable Characteristics:
- Steel-wire parallel member.filler protect tube fiber steel tape amored.
- Excellent mechanical and environmental performance.
- Compact structure.light weight.
- Can be installed conveniently and operated simply.
Outdoor fiber optic cable Applications:
- Adopted to Outdoor distribution.
- Suitable for aerial .pipeline laying method.
- Long distance and local area network communication

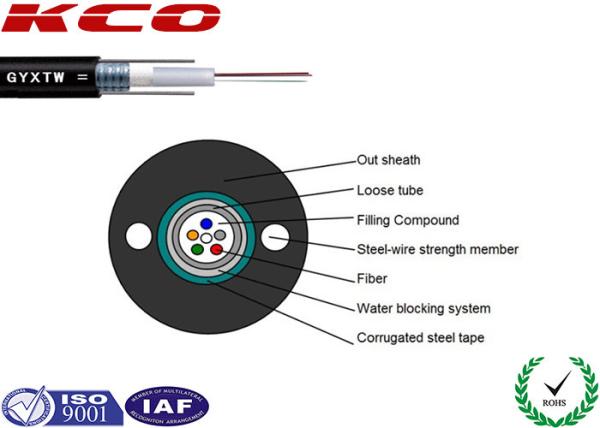

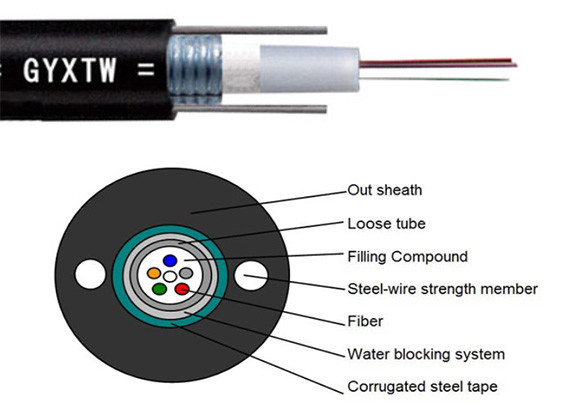

Fiber optic cable constructions:
Outdoor fiber optic cable Technical Parameters:
| Cable Count | Out sheath
Diameter | Weight | Minimum allowable Tensile Strength
(N) | minimum allowable Crush Load
(N/100mm) | Minimum Bending Radius
(MM) | Storage
temperature |
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) |
| 2 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 4 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 6 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 8 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 10 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 12 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| Optical Characteristics: |
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 |
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber |
| G.652D | B2: Zero dispersion shifted |
| G.655 | B1.2 :Cut-off wavelength shifted |
| G.657(A1,A2 ,B3) | B4: Main technical data for positive
dispersion shifted single-mode fiber |

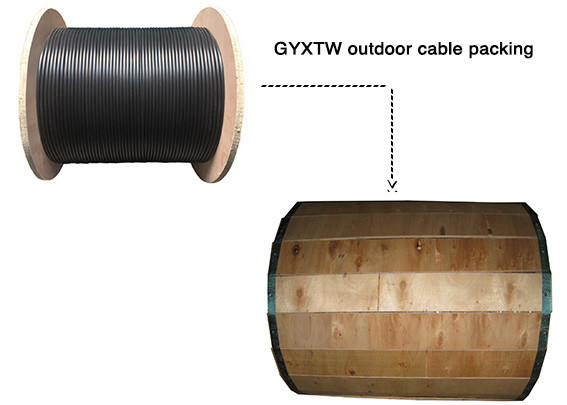

Fiber optic cable packing ways:
OEM/ODM service: Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.
Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
Product Tags:
|
|
Outdoor Optical Fiber Cable Images
|
