Single mode ST/APC fiber optic connector un-assembly for patch cord production
Fiber Optic Connectors Descriptions:
- The ST connector utilizes a bayonet twist-lock connection with 2.5mm ferrule.
- Available in singlemode and multimode.
- The ST connector features reliable and durable field installation.
- The design of the ST connector enables installers to crimp the back of the body directly onto the cable jacket and Kevlar.
Fiber Optic Connectors Applications:
- Telecommunication Network.
- Testing Equipment.
- Local Area Network(LAN).
- CATV.
- FTTH.
Fiber Optic Connectors Features:
- High quality ceramic components and Material.
- End-face geometry requirement complies to Telcordia GR-326-CORE.
- 100% tested on optical performance (Insertion Loss & Return Loss).
- Simplex, duplex and higher core densities.
- 900 micron, 2mm, 3mm cable applications.

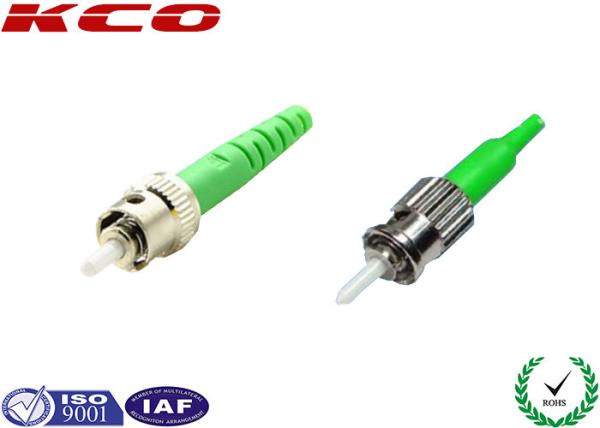

Fiber Optic Connectors Product Pictures:
Details about Fiber Optic Connectors:
| Connector Ferrule | Ceramic |
| Alignment Sleeve | Ceramic |
| Connector Body | UL 94V-0 rated Thermoplastic to meet standard; amiability ratings |
| Crimp Insert/Crimp Tube | Nickel-Plated Brass/Thermoplastic Elastomer Polymer |
| Dust Cap | Nylon or PVC |
| Strain Relief Boot | Flame retardant (UL-Rated 94-V0) polymer |
| Connector Style | SC, FC, ST, LC, MTRJ, etc |
Fiber Optic Connectors Specifications:
Item | Single mode | Multimode |
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
Insert Loss/connector
(single Fiber) | 0.3dB Max. (0.2dB typ.) | 0.3dB Max. (0.2dB typ.) |
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A |
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) |
| Pull Strength | ≥98N | ≥98N |
Ordering Information:
1, Connector type : SC, LC, FC, ST, MTRJ, etc
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm
Packing ways:
According to export standard packing.
OEM/ODM service: Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.
Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
