KCO-ODP-16W Water-proof Fiber Optic Splitter Box For 2*16 1*16 PLC Splitter Terminal Box
Descriptions:
- The water-proof fiber optic splitter box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
- The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Specification:
| Product Name | 16 core fiber optic distribution box(termination box) |
| Shape | Total enclosed structure, be in nice shape |
| size | 292mm(H)*218mm(W)*83mm(D) |
| Weight | 1.5KG |
| Material | PC+ABS |
Material characteristic | 1. Wet-proof, water-proof, dust-proof, protection level up to IP67
2. Construction-lightweight plastic offers strength
3. Resistance to chemical and U.V attack
4. Wall mounting or pole mounting. |
| Item | KCO-ODP-16W |
| Main Technical Data | Capacity |
| Insertion loss | ≤0.2dB | 1*16 PLC splitter 2*16 PLC Splitter SC/LC/FC/ST/E2000 adapter |
| UPC return loss | ≥50dB |
| APC return loss | ≥60dB |

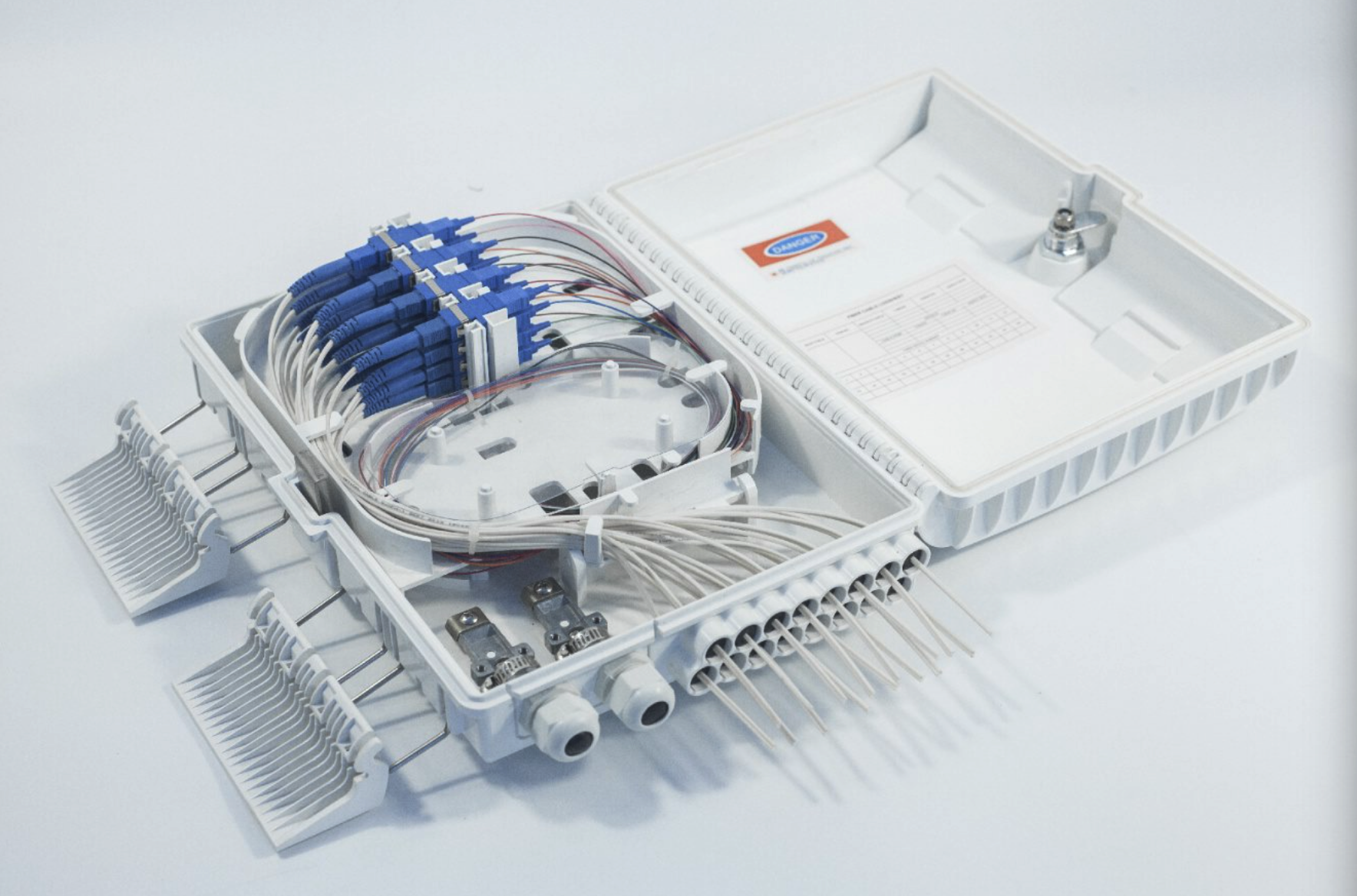

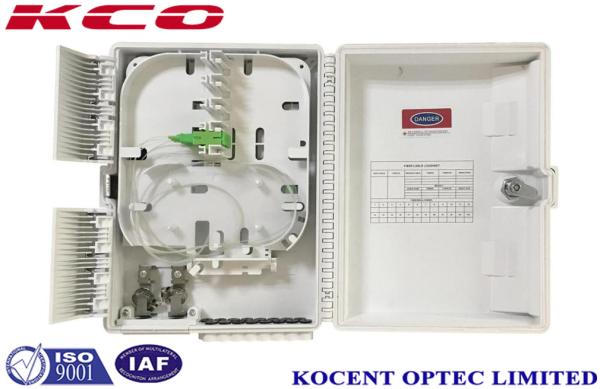

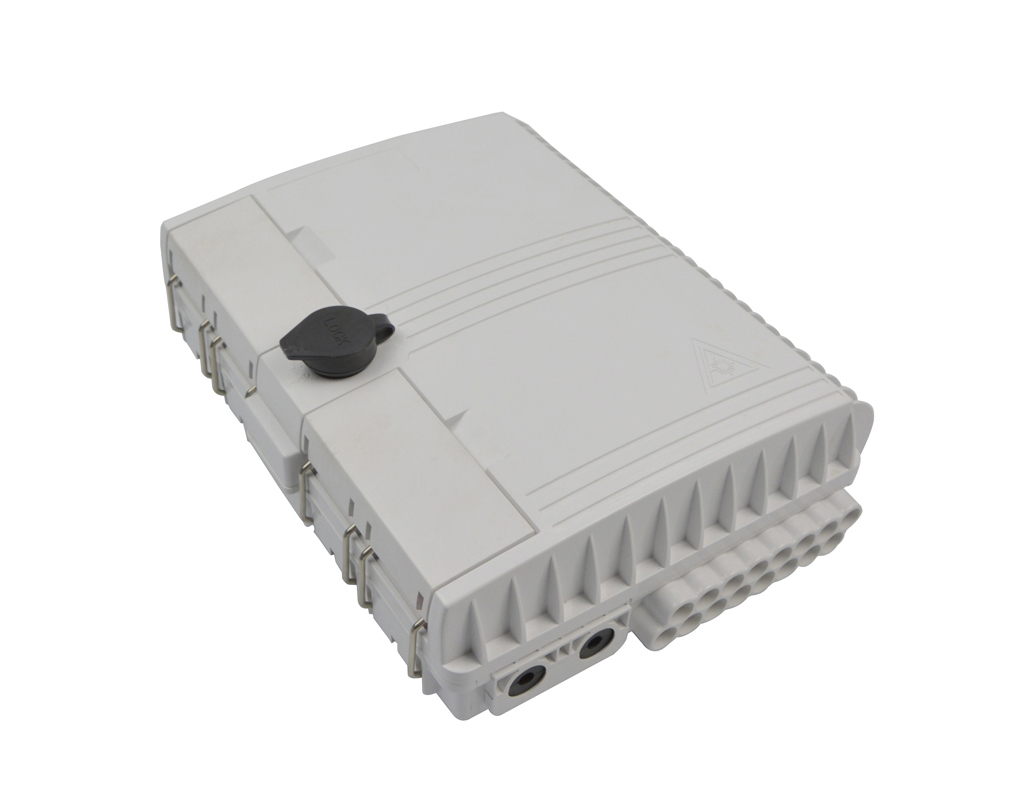

Products photos:
Application:
- Widely used in FTTH access network.
- Telecommunication networks.
- CATV Networks.
- Data communications networks.
- Local Area Networks.
Features:
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.

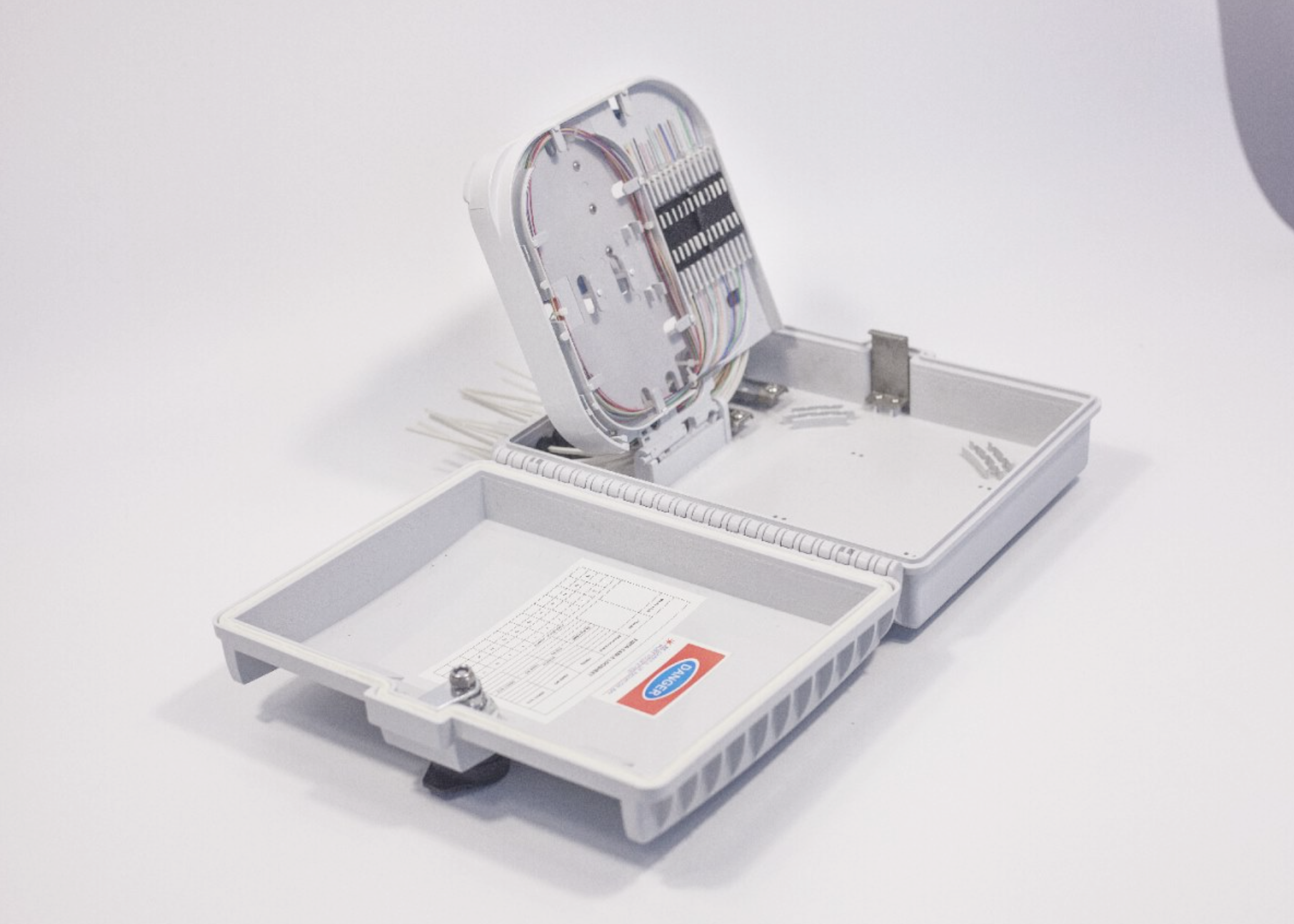

- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

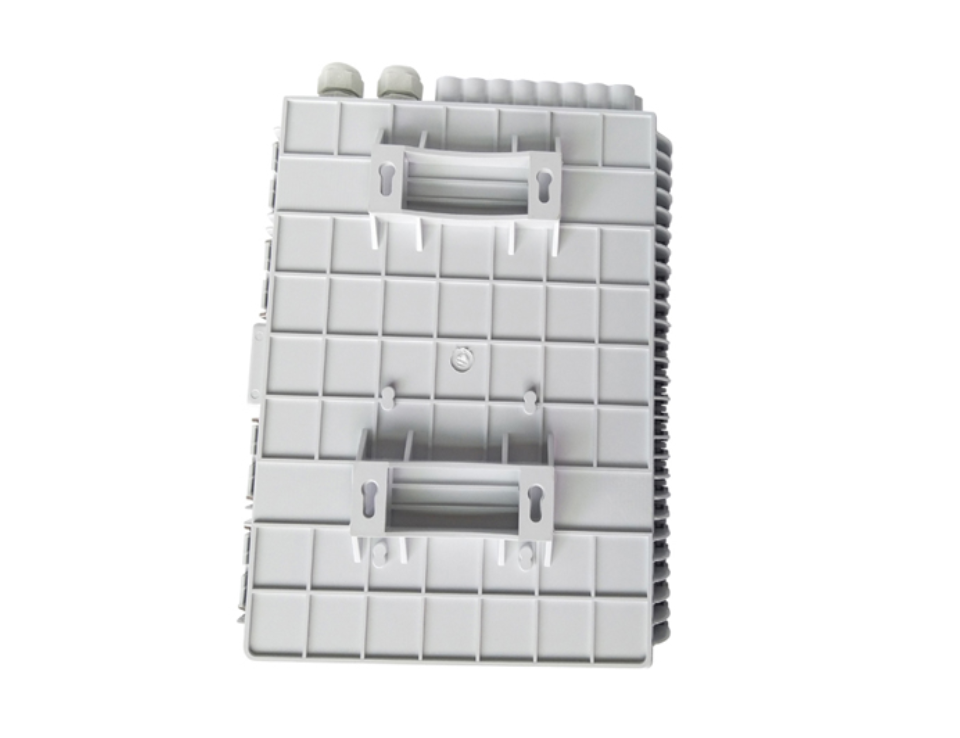

- Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Specifications:
- Operating Temperature: -25°C~+45°C
- Relative Hunmidity: ≤95%(40°C)
- Atmosphere Pressure: 70KPa~106KPa
- Insulated Resistance: ≥2x104MΩ/500v(DC)
- Dielectric Strength: ≥15KV(DC)/1min,no spark-over and no flying arc
- Fiber Bend Radius: ≥40mm
Dimension:
| Model | Capacity | Dimension (LxWxH) | Weight |
| KCO-ODP-16W | 1*16 PLC splitter, 16 SC adaptors 2*16 PLC Splitter, 16 SC adapters | 292×218×83 mm | 1.5kg |
Packing:
1. Wall mounting kits: 4 pieces
2. Screws: 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 16 pieces
5. Key: 1 piece
