Telkom 16 Core ODP Optical Distribution Point ABS+PC Grey 1*8 PLC Splitter SC/UPC
Descriptions:
- Optical Distribution Point with Solid Splitter (ODP Solid) is designed to connect to Feeder / Distribution cable to subscriber’s Drop Cable using PLC Splitter in FTTx networks.
- This ODP has two (2) input ports and 16 output ports on the bottom and it is easy to install on the pole or wall.
Specification:
| Item | KCO-TK-208 |
| Dimension | 345x300x95mm |
| Net Weight | 1.8kg |
| Splice tray | 1pcs |
| Adapter ports | 16 port |
| Splitter | Mini Tube PLC Splitter 1*8 |
| Splitter no. | max. 2pcs |
| Color | Grey |
| Working Temperature | -25°C ~ 60°C (5 to 95% relative humidity) |
Feature:
- ABS material used ensures the body strong and light.
- Water-proof design for outdoor uses.
- Protection Level: IP65.
- Easy installations: Ready for wall mount – installation kits provided
- Adapter slots used – No screws and tools needed for installing adapters.
- Ready for splitters: designed space for adding splitters.
- Space saving! Double-layer design for easier installation and maintenances:
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Accommodates both cable glands as well as tie-wraps
- Lock provided for extra security
Application
- Widely used in FTTX systems;
- PON networks;
- Fiber optic termination, indoor and outdoor application;
- CATV networks, data communications networks, telecommunication networks;
- FTTD (Fiber To The Desk) interfaces.
Operating Conditions:
- Temperature -45~+85
- Relative humidity ≤85%(+30 C)
- Atmospheric pressure 70KPa~106KPa
Qualification:
- Nominal work wave-length:850nm,1310nm,1550nm
- Connectors loss ≤0.2dB
- Insert loss ≤0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)

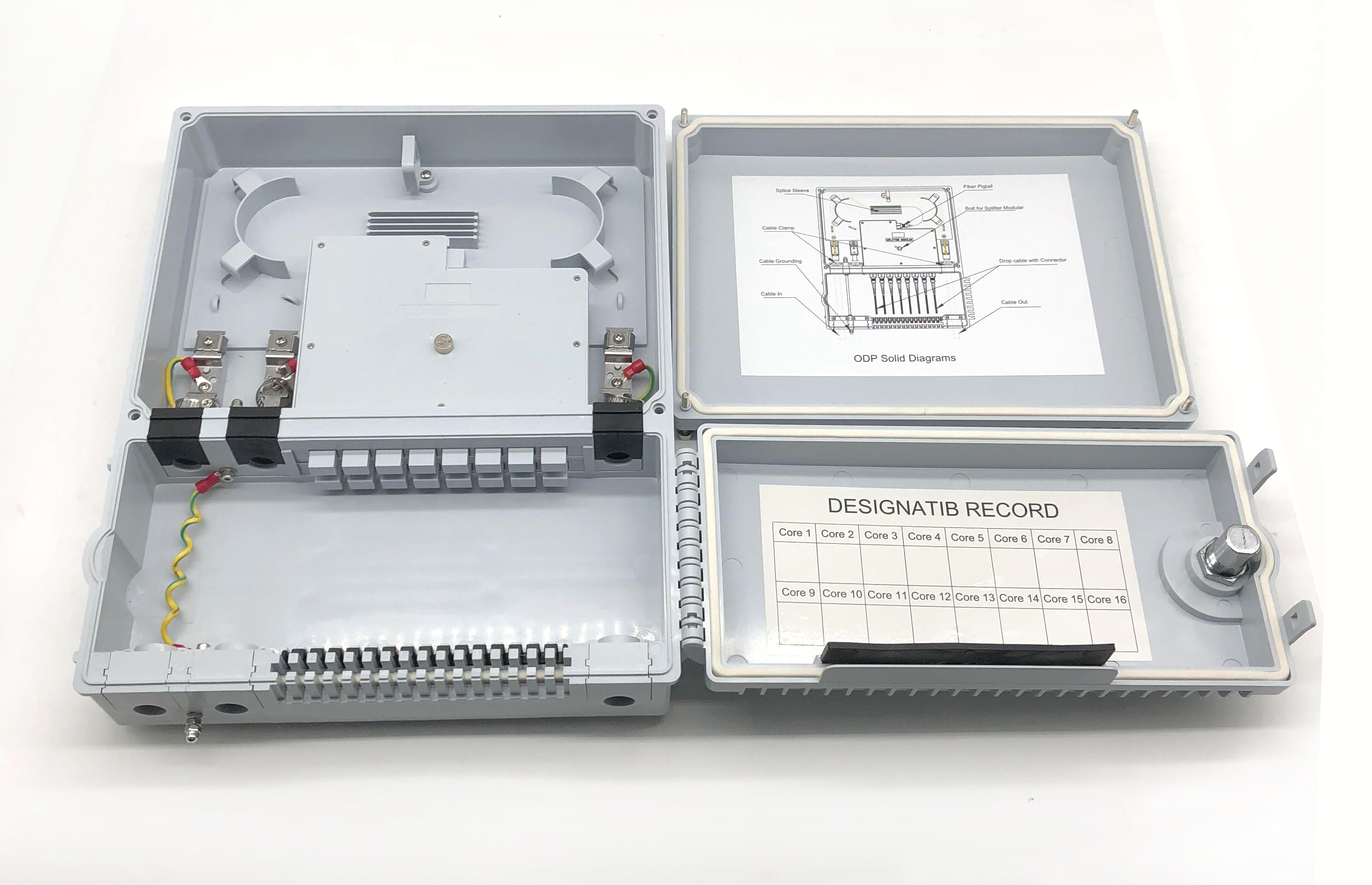

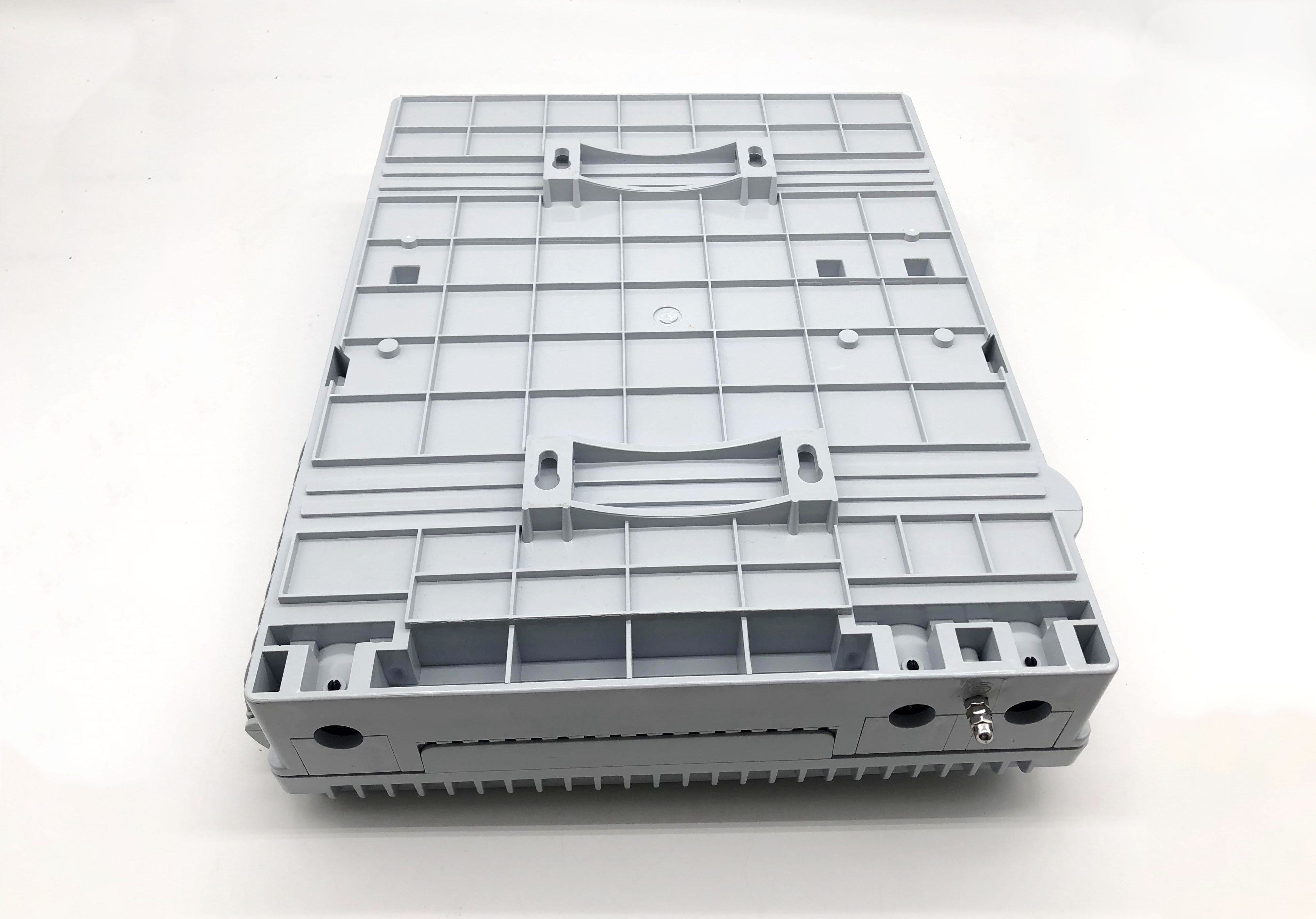

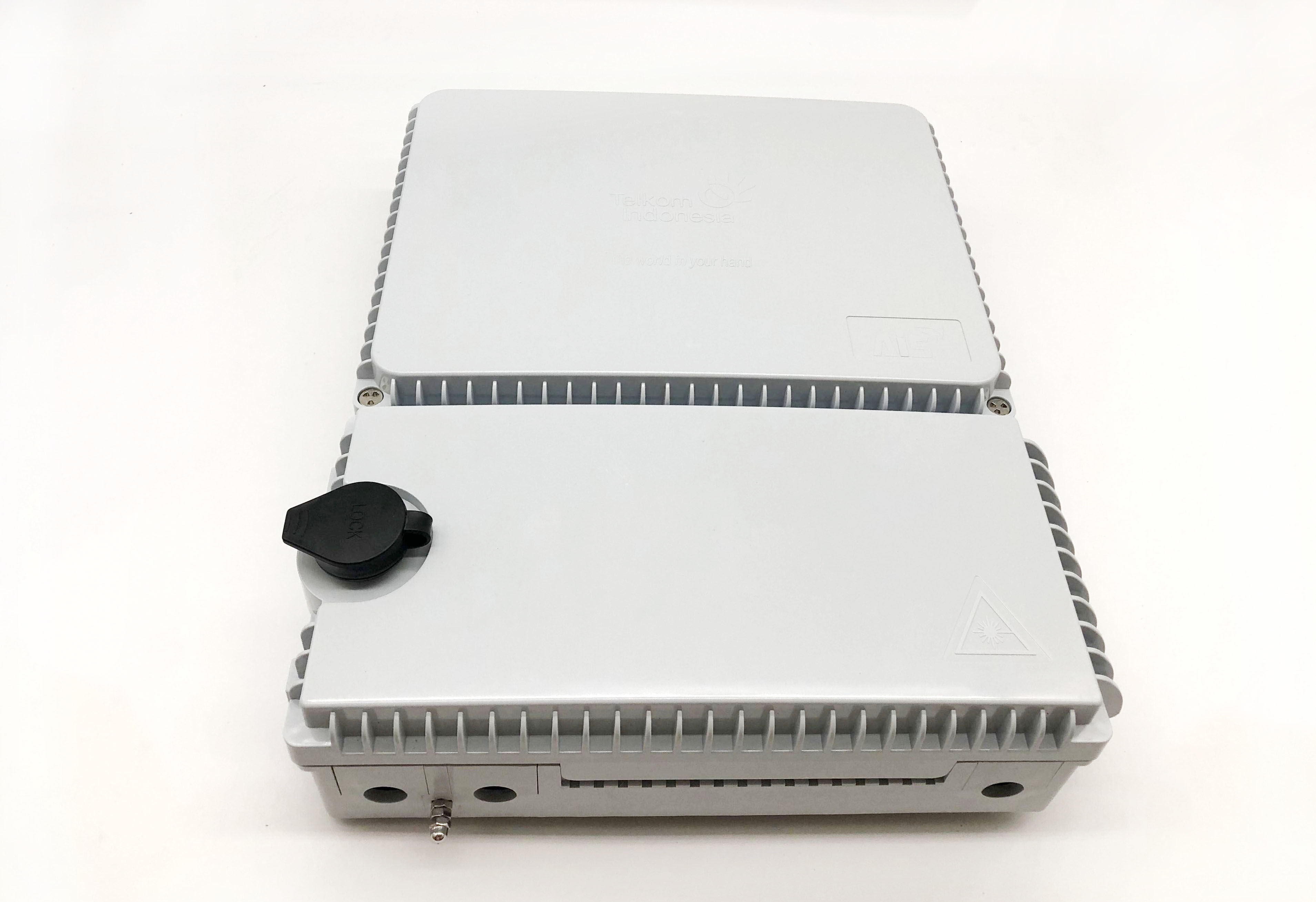

Products photos:
