Telefónica FAT2803SD Fiber Optic Distribution Splitter Box / Outdoor Terminal Box KCO-NAP-0216S
Quick information:
- P/N: KCO-NAP-0216S
- Material: ABS+PC
- Size: 260*215*115mm
- Weight: About 1.20kgs
- Packing: 1pc/carton box
- Maximum capacity: 1pc of 1*16 plc spitter mini type with SC Connector
- Connector port: compatibility with Huawei mini SC APC water proof connetor
- Accessories: Heat shrinkable tube, screw, protection tube, pole mount kits, PLC splitter, Huawei mini SC APC adapter, ftth drop patch cable.
Descriptions:
- The outdoor fiber optic distribution spitter box KCO-NAP-0216S is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
- The outdoor fiber optic distribution spitter box KCO-NAP-0216S is design to use for outdoor application.
- The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
- It maximum can install 1 pcs 1*8 mini type fiber optic plc splitter.
- Its connector port is compatibility with Huawei mini SC APC water proof connector.
- It is suiable to use for FTTH, FTTA, FTTB, FTTO telecommunication project.
Feature:
- Total enclosed structure.
- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Specification:
| Model | KCO-NAP-0216S |
| IP Protection Grade | 65 |
| Raw Material | ABS+PC |
| Number of splice trays | 1 |
| Maximum Cable Diameter (mm) | 18 |
| Max capacity | PLC1*8, PLC1*16, 16SC |
| End-use temperature | -40～+85℃ |
| Adapter | waterproof SC simplex |
| Weight | 1.2kg |
| Color | Light Gray |
| Dimensions | 260*215*115mm |

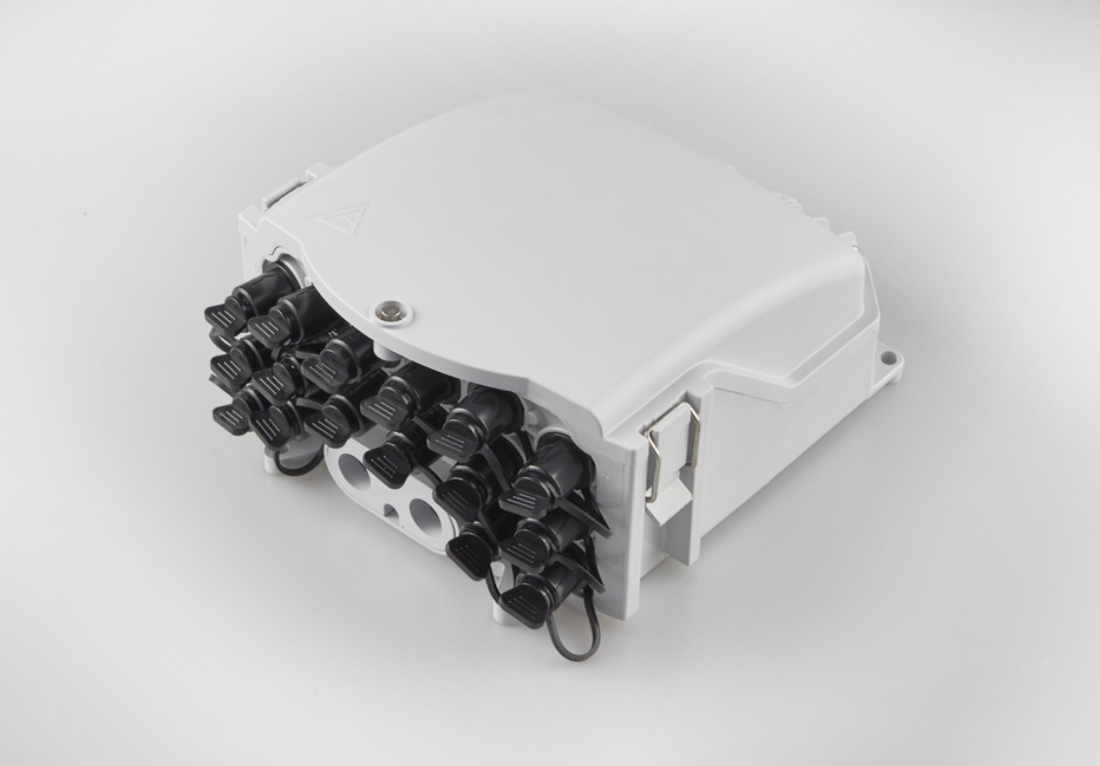

Products photos:
Technical data:
1. Environmental requirement
Working temperature: -40℃~+85℃
Relative humidity: ≤85% (+30℃)
Atmospheric pressure: 70KPa~106Kpa
2. Main technical datasheet Insertion loss: ≤0.15dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
3. Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ/500V (DC); IR≥2, 104MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
