12FO Fiber Optic Distribution Box / 1U 12core Fiber Optic ODF Unit For 19'' Distribution Frame
Description:
- ODF unit box, fiber optic splicing and distribution box, also named ODF fiber management system.
- It is used for cable inputting, fixing, protecting, and splicing with pigtails. The product is specially designed for fiber distribution in fiber optic communication service center.
- It can be installed in the distribution frame, and can be also assembly with digital distribution unit, and audio distribution unit together in one fiber optic composite cabinet.
- The product is with flexible configuration, easy to install and maintain, convenient to manage.
- It is the necessary device in termination of fiber optic network, and can realize the distribution at the intermediate route.
- The fiber optic distribution Unit is designed to use in the standard 19 inch fiber optic distribution frame.
- It can be 12 cores, 24 cores, 48 cores, 72 cores, 96 cores and even 144 cores.
- The high of unit box can be 1U, 2U, 3U, 4U or 6U. We can supply full loaded with adapter and pigtail of diber optic ditribution unit.
- With common adapter port, we can use many type of fiber optic adapter on it such as SC, LC, FC square, ST, E2000, etc.
Quick Information:
| Part number | KCO-ODFU-12 |
| Size | 485x300x44.5mm |
| Capacity | 12 cores (for SC), 24 cores (for LC) |
| Material | Steel |
| Cable | Outdoor cable, indoor cable, ftth cable |
| Cable diameter | Max. 22.0mm |
| Adapter | SC, LC, FC, ST, E2000, etc |
| Pigtail | SC, LC, FC, ST, E2000, etc |
Dimension:
| P/N | Capacity | Dimension | Weight |
| KCO-ODFU-12 | 12 cores | 485x300x45mm | 3.9kg |
| KCO-ODFU-24 | 24 cores | 485x300x75mm | 4.7kg |
| KCO-ODFU-48 | 48 cores | 485x300x140mm | 6.9kh |
| KCO-ODFU-72 | 72 cores | 485x300x198mm | 9.2kg |
| KCO-ODFU-96 | 96 cores | 485x300x252mm | 11kg |
| KCO-ODFU-144 | 144 cores | 485x300x340mm | 14kg |
Applications:
- FTTH, FTTx, FTTB
- LAN
- Data centers
- Local area network etc
Features:
- It is composed of case body, fiber optical splice tray and adaptor fixing frame.
- It is devised into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.
- Combine fusion and connection, surplus fiber holding, and patch cord holding in integration
- Surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than 40mm.
- Adapter panel to fix adaptors which available for different types of adaptors, easy for operation and avoid any unexpected damage to fiber.
- Cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.

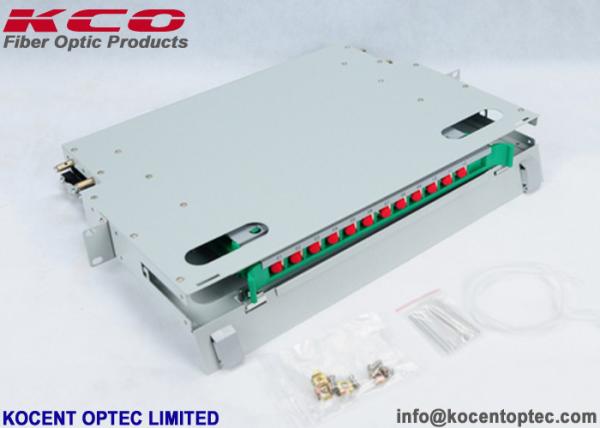

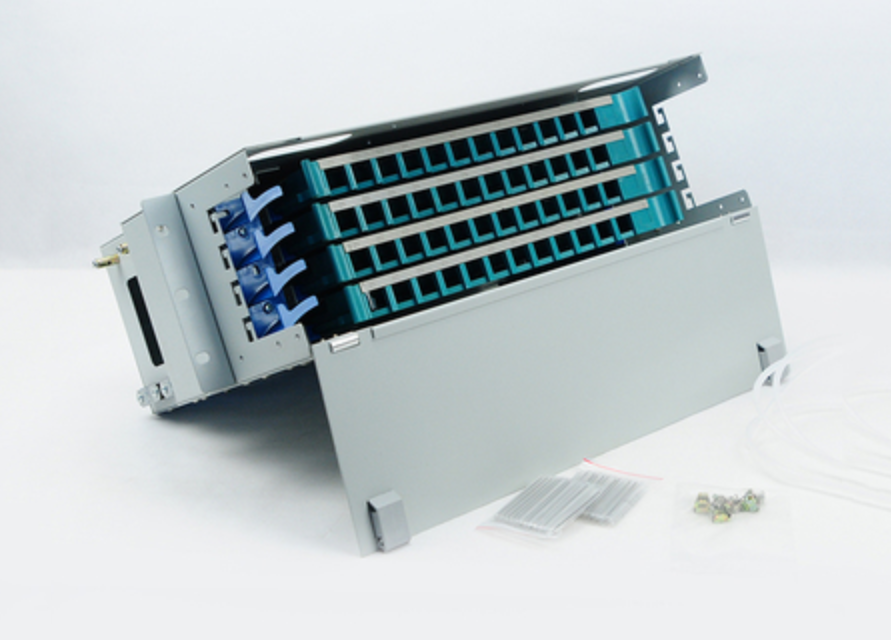

Product picutures:
Operating Conditions:
- Temperature -45~+85
- Relative humidity ≤85%(+30 C)
- Atmospheric pressure 70KPa~106KPa
Qualification:
- Nominal work wave-length:850nm,1310nm,1550nm
- Connectors loss ≤0.2dB
- Insert loss ≤0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
