FTTH IP65 Outdoor 24core Fibre Optic Terminaltion Box KCO-ODB-0424X Wallmount Polemount
Descriptions:
- KCO-FDB-0212X series outdoor wall mount and pole mounted fiber optic termination box for FTTH drop cable entry or exist, it is available in 3 colors:
Black: KCO-ODB-0424XB
White: KCO-ODB-0424XW
Gray: KCO-ODB-0424XG
- KCO-ODB-0424X fiber optic distribution box is able to hold up to 24 subscribers.
- It is fiber optic distribution box and also splitter box too. It can install maximum 24pcs of SC adapter. It can install 1pc 1*4, 1*8 or 1*12, 1*16 1*24 mini blockless type of plc splitter. Or 1*8 and 1*16 LGX box type of PLC Splitter
- It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.
- KCO-ODB-0424X fiber optic distribution box is used for outdoor application, it can be wallmount or pole mount. Its waterproof class can meet IP65.
- KCO-ODB-0424X is able to hold up to 24 subscribers.
- It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.
- It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Feature:
- 1*16 splitter can be installed as an option
- 24 ports for drop cable outports
- Fiber bend radius control more than 40mm
- Suitable for the fusion splice or mechanical splice
- Integrated with splice cassette and cable management rods
- Efficient cable management
- Manage fibers in a reasonable fiber radius cnodition
- Easy to maintain and extend the capacity
- Waterproof design with IP-65 protection level.
Quick Information:
| Item | Material | Size | Max Capacity |
| KCO-ODB-0414X | ABS | 330*270*95mm | SC 24ports | LGX PLC 1*16(SC) | Tube PLC 1*24(SC) |
Function:
- P/N: KCO-ODB-0424X
- Material:
ABS
ABS+PC
- Long life time: about 20 years
- Can accommodate 1x4, 1x6, 1x8, 1x12, 1x16, 1x24 PLC splitter.
- Rainfall resistant, IP65 outdoor using.
- Can load 24pcs LC, FC, ST, SC, E2000 … adapters.
- Installation:
Wall mounting
Pole mounting
- The cover with 2 reinforcing closing pieces, easy to open and close.
- 04pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting;
- 24pcs exit ports for FTTH drop cable.

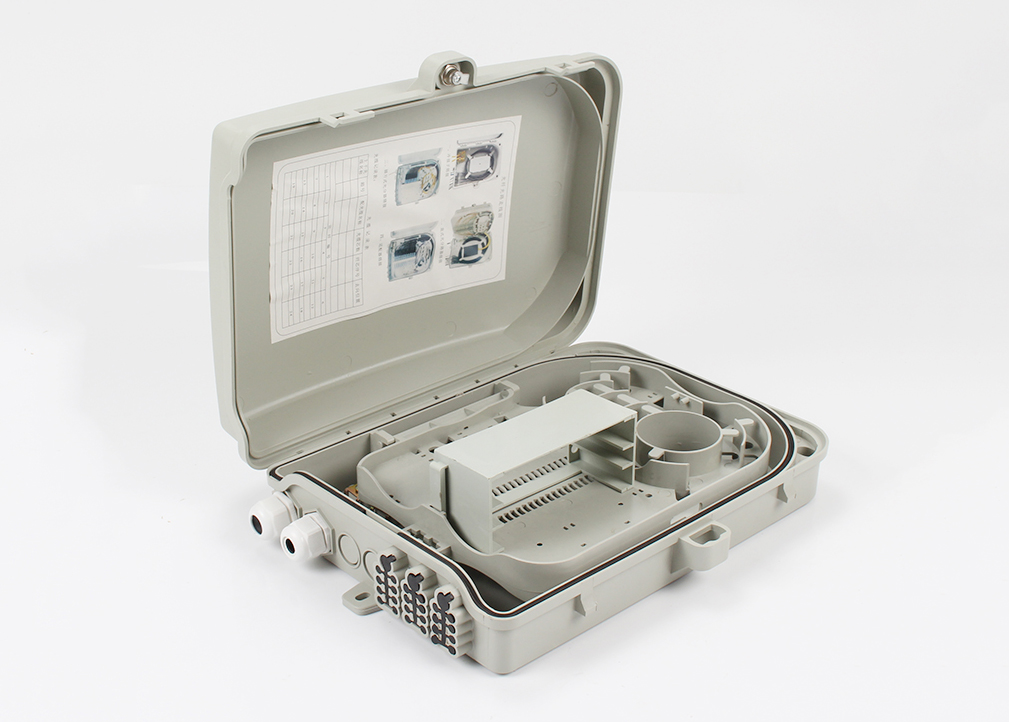

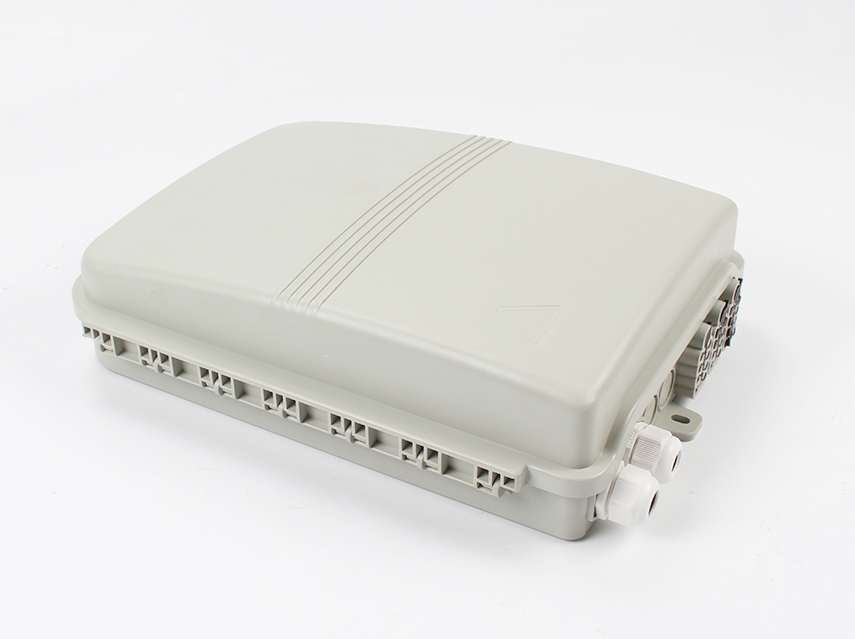

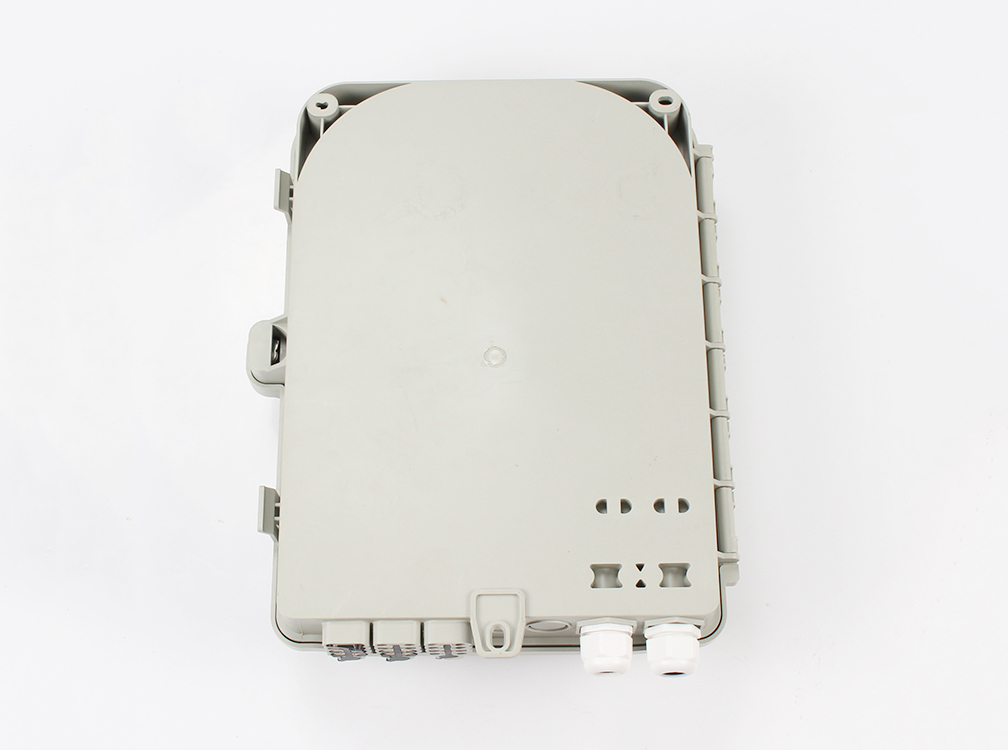

Products photos:
Related Products:
OEM/ODM Service:
Kocent Optec Limited is supplier of passive fiber optic products.
Fiber optic distribution box series is one of our best advantage products.

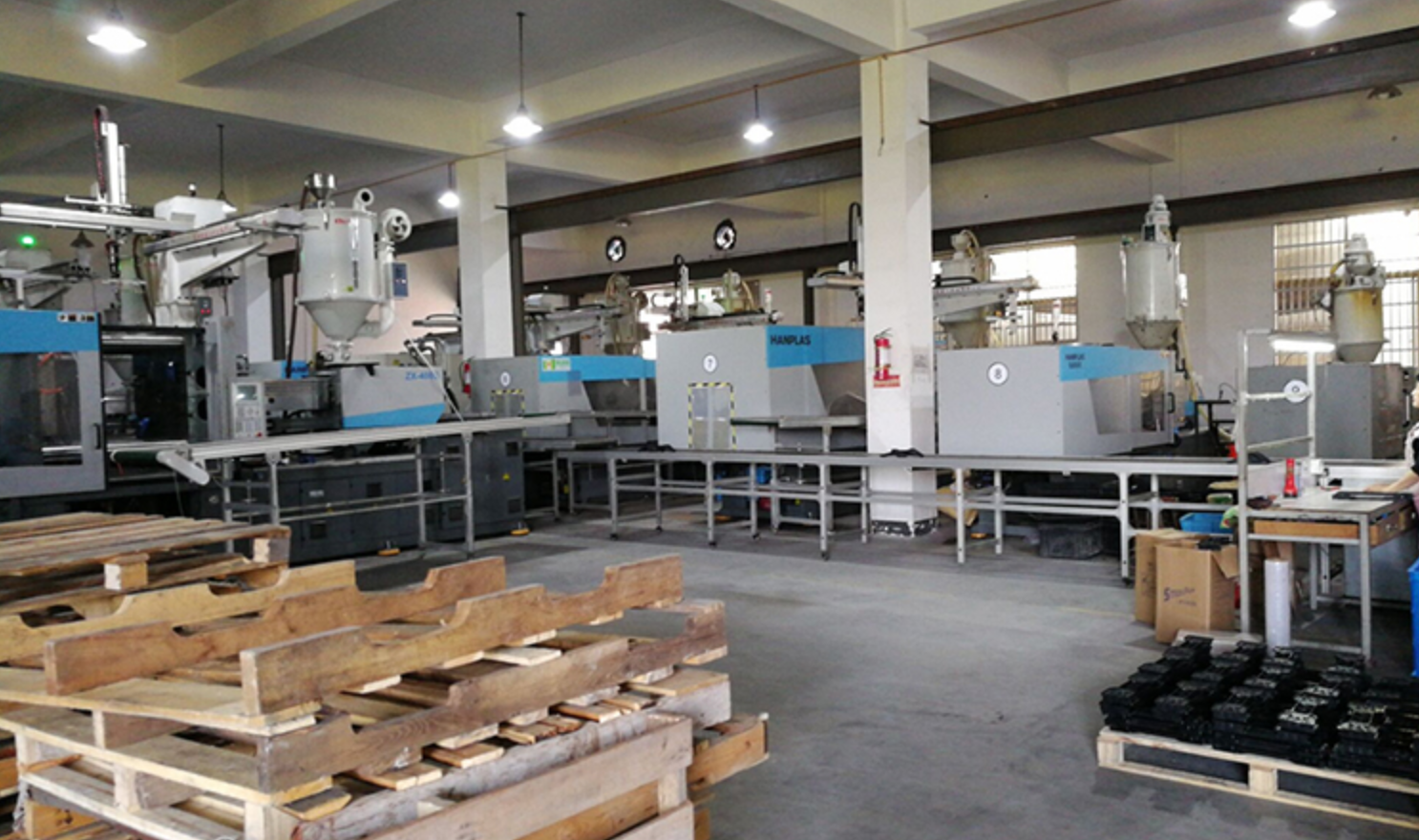

With more than 50 set of box molds, we can supply many type of plastic distribution box and terminal box for all of FTTH project.
Our plastic distribution box can make by: ABS plastic, ABS+PC plastic, PP+fiber plastic, SMC plastic.
OEM and ODM service is opening for all of old and new customer. Contact with our sales team to get best support.
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, etc
- Standard shipping port: Shenzhen, Hongkong, Ningbo
